Description
| WS-25EV-P – Pneumatic | 116 PSI |
| WS-25EV-E – Electric | 110V 1-PH |

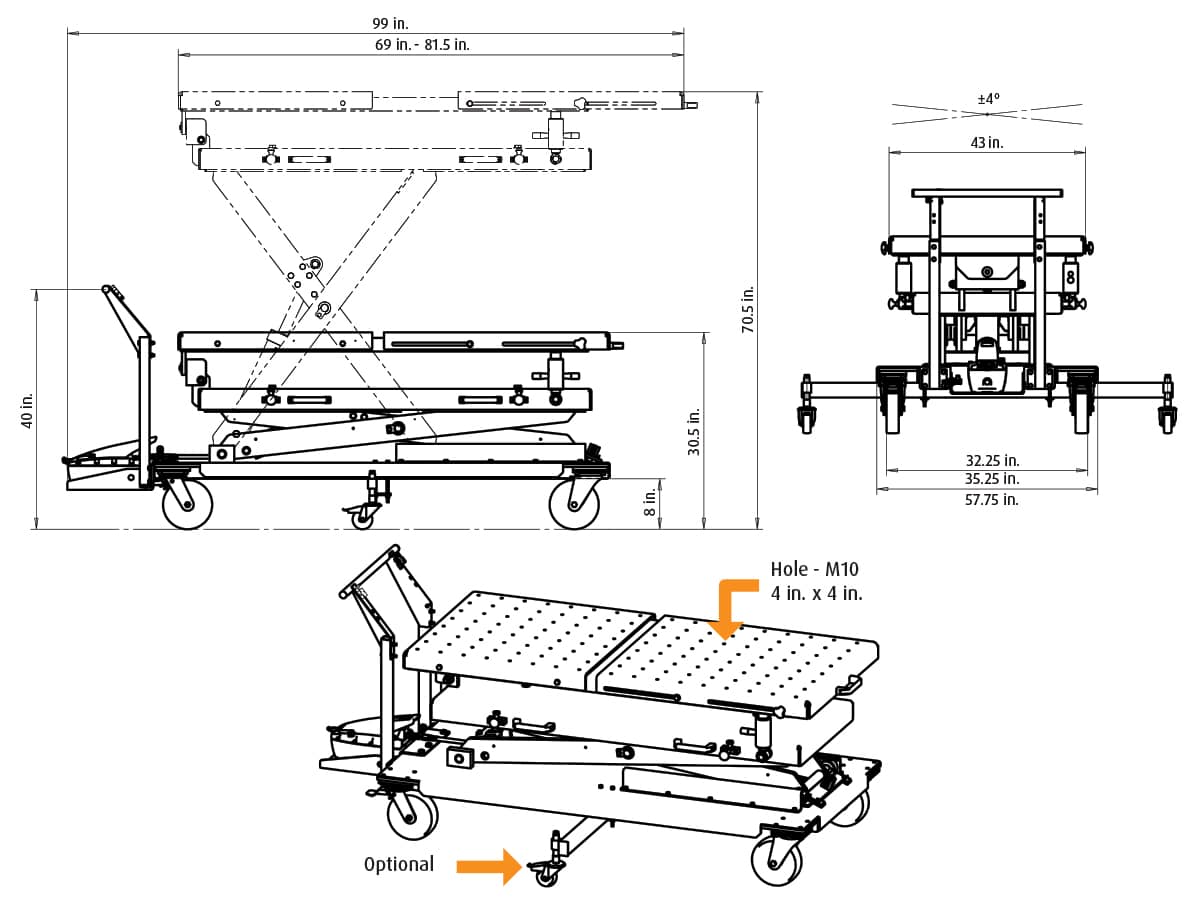

| Max. Cap. | 4,500 lbs. |
| Platform | 43“ x 81.5“ |
| Max. Height | 70.5“ |
| Min. Height | 30.5“ |
| Stroke | 40“ |
| Lifting Time | 55 sec. |
| Weight | 1,322 lbs. |

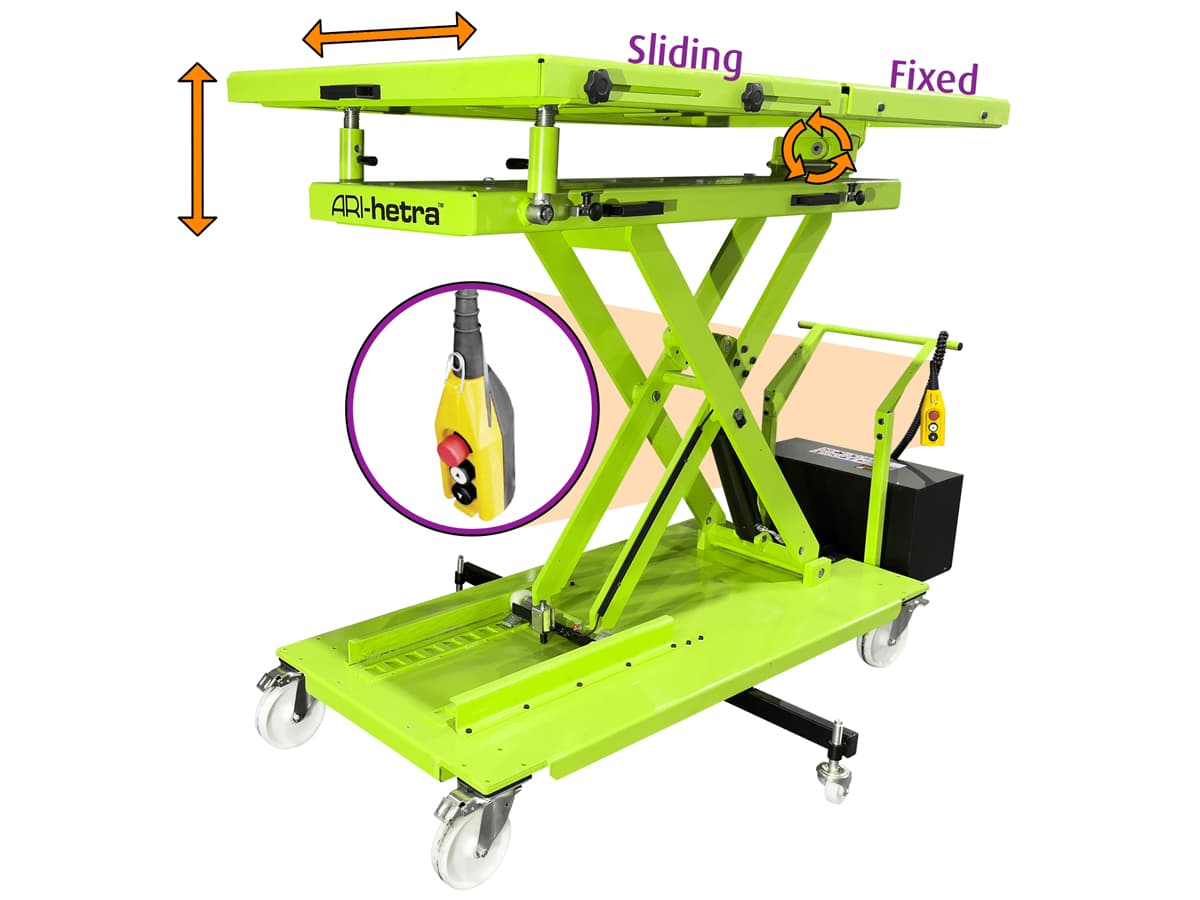

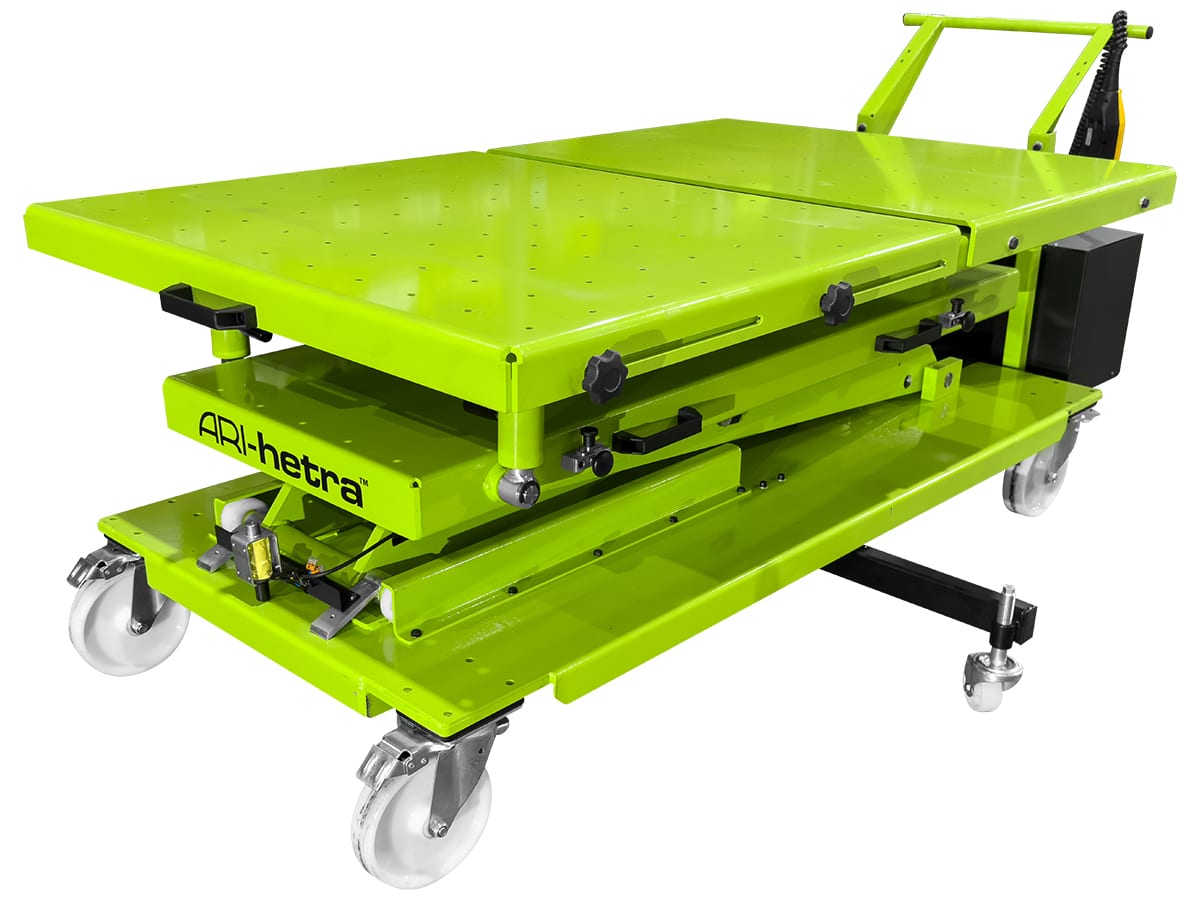

Hybrid & Electric Vehicle Battery Lift WS-25EV-E and P
The ARI-HETRA EV Battery Lift (WS-25EV-E Electric and WS-25EV-P Pneumatic) is designed to service heavy-duty truck and bus hybrid and electric vehicles.
Features
- Designed to service heavy-duty truck and bus hybrid and electric vehicles.
- Wide base for stability for large & heavy batteries.
- Pneumatic or 110V single-phase electric operation.
- Surface table with 4” x 4” grid pattern and M10 holes.
- Load platform tilts in three directions with longitudinal and transverse inclinations of 1.25”.
- Large, extendable/sliding platform from 69” to 81.5”.
- Heavy-duty caster wheels with a large diameter for easy rolling and built-in brake.
- Remote control included.
Models Available
- WS-25EV-E (Electric 110V 1-PH)
- WS-25EV-P (Pneumatic)
